Custom Steel Enclosures

“Wired assembly tested to AS61439.1 and AS61439.2”

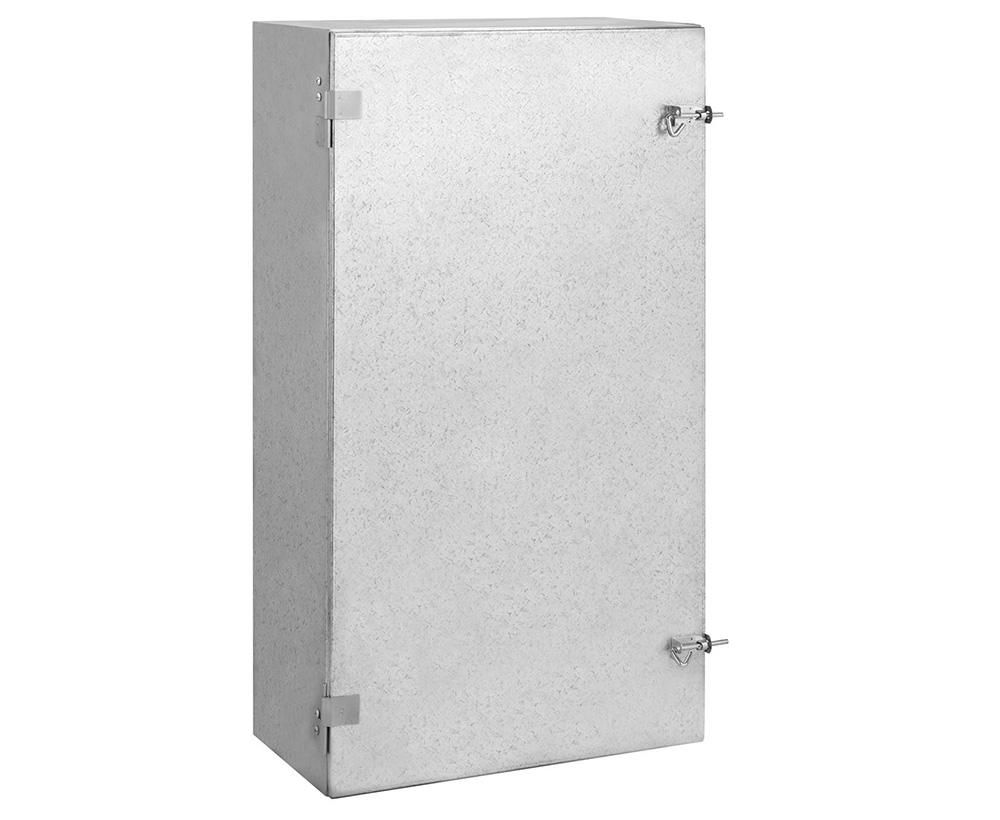

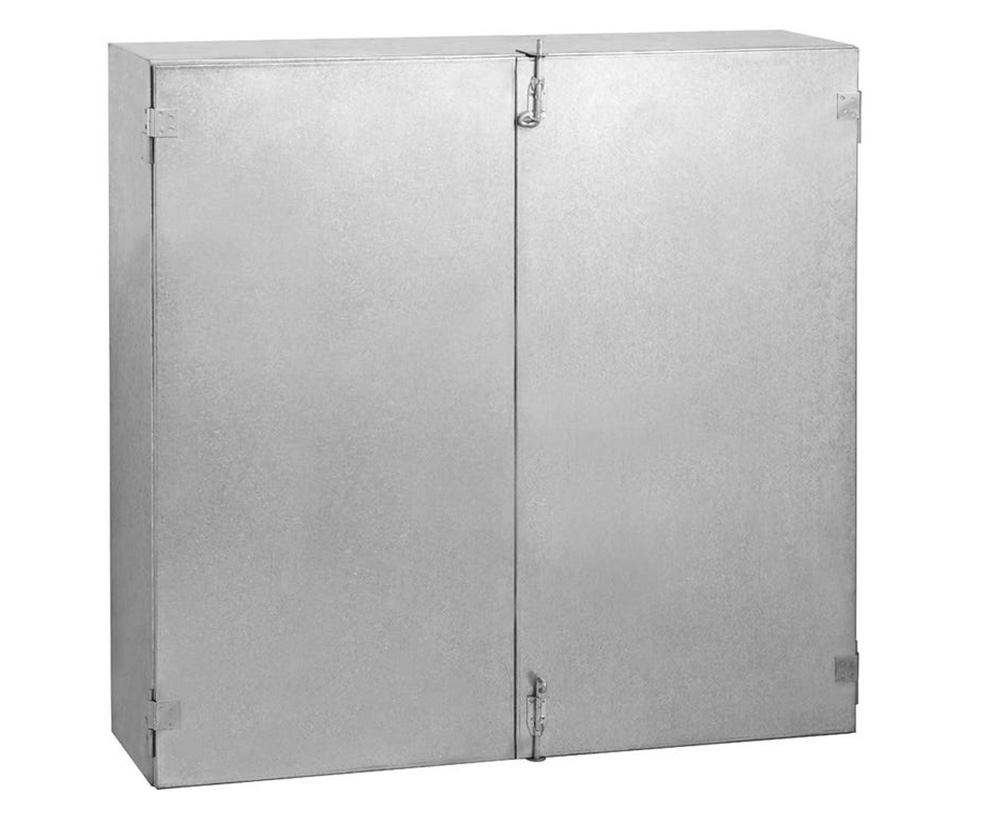

IP42 ENCLOSURE

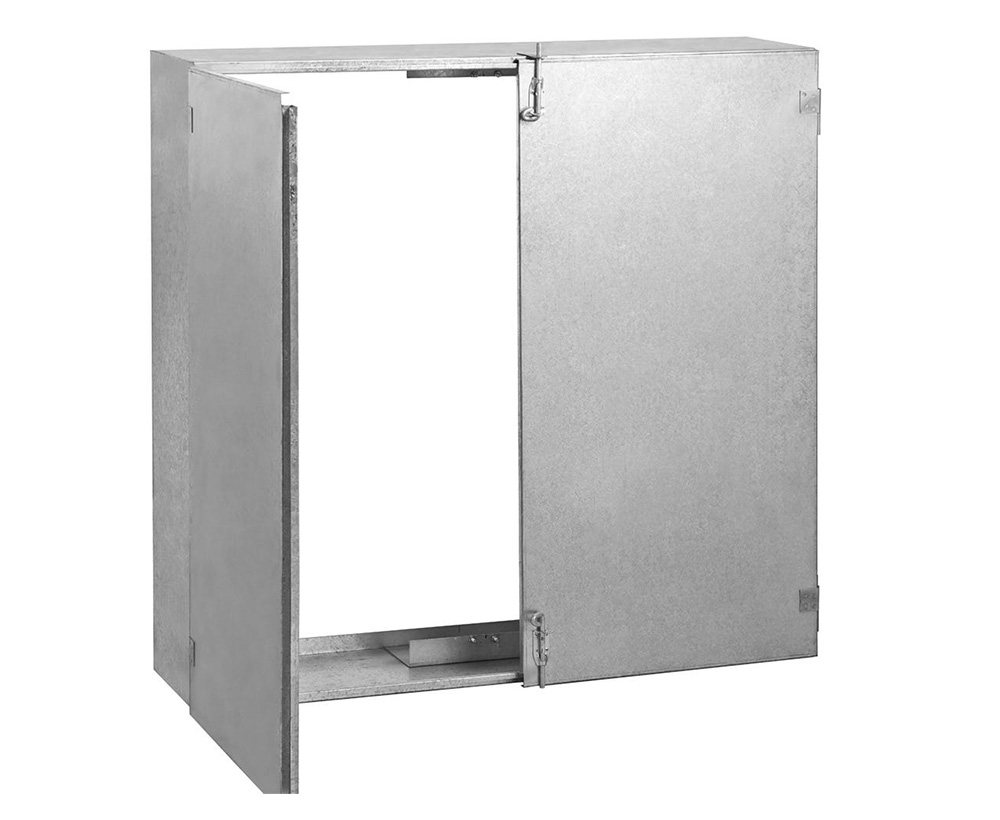

IP42, BOX NO BACK

IP42 ENCLOSURE

IP55 MB SPECIAL (MADE TO ORDER)

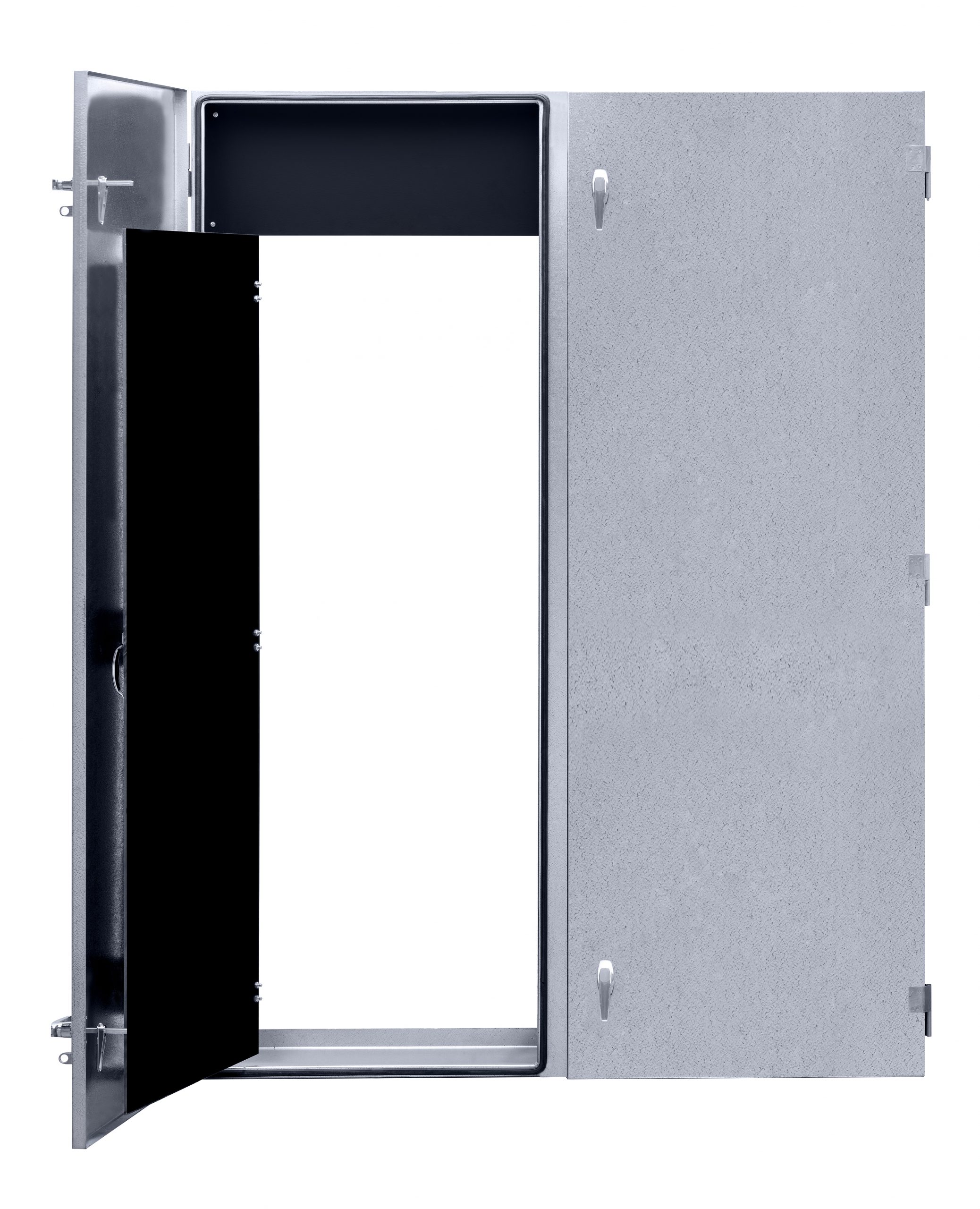

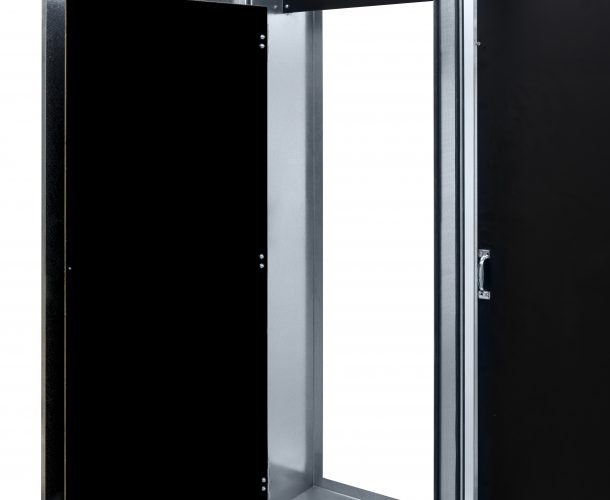

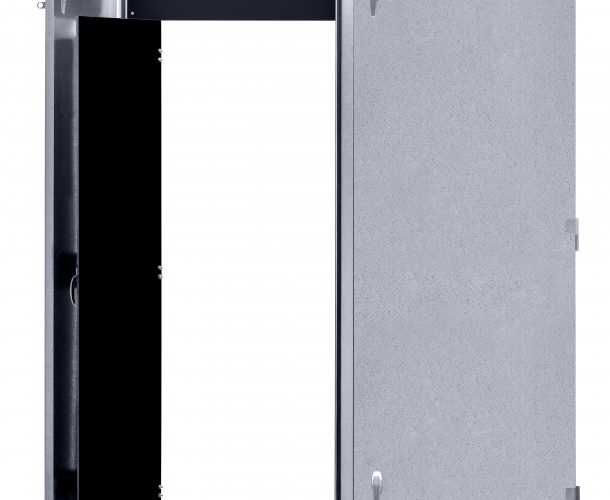

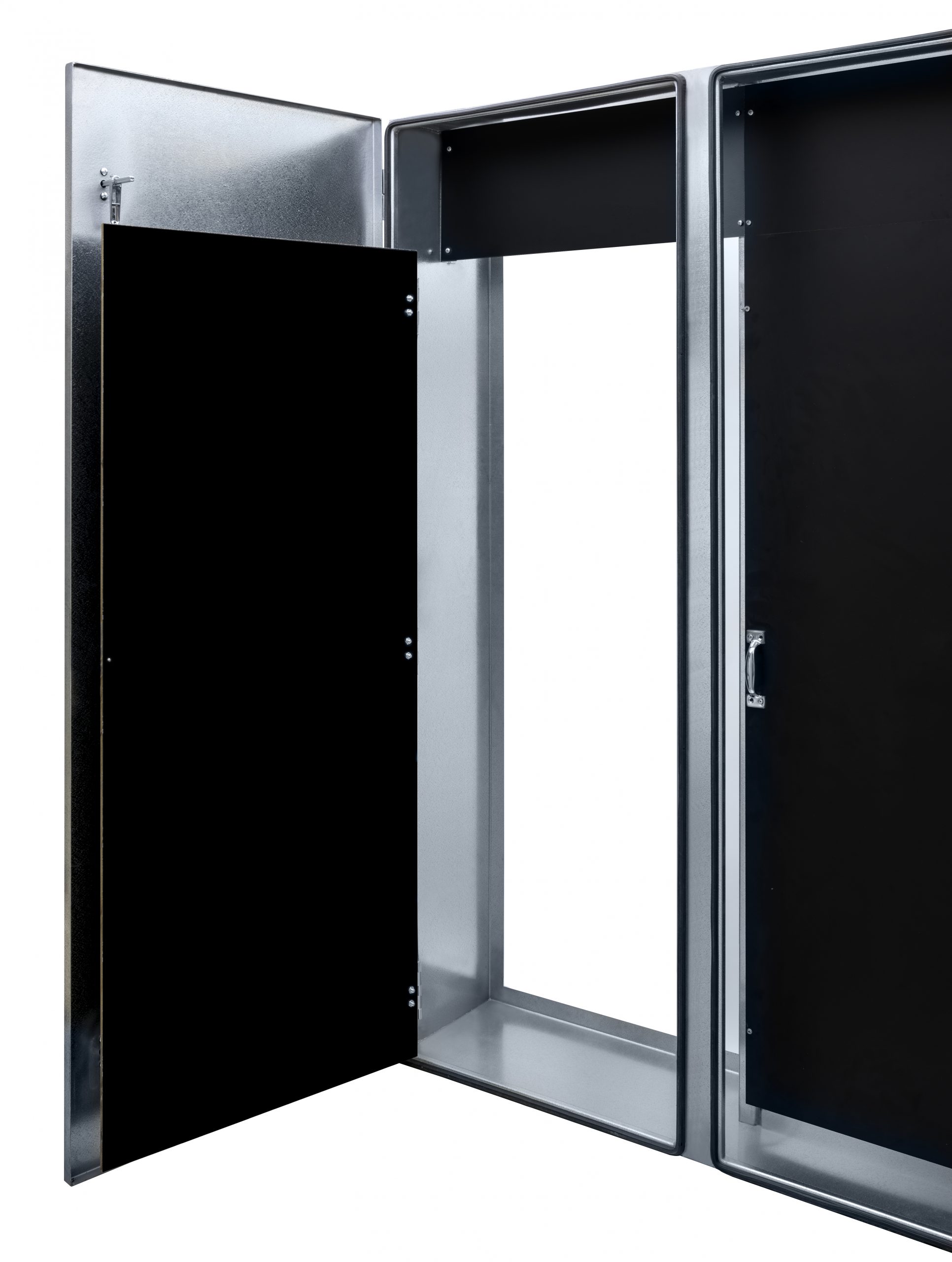

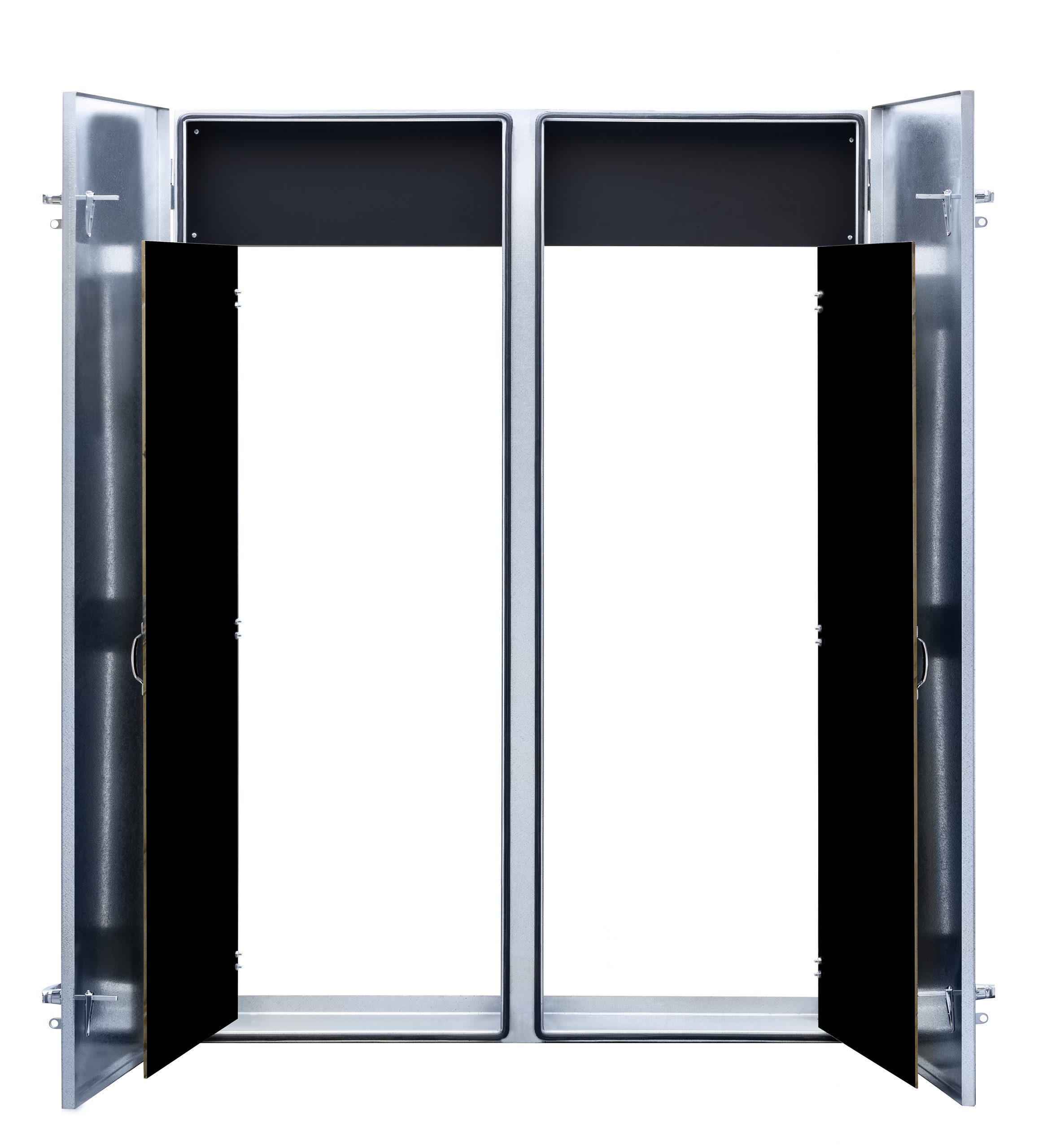

IP55, BOX NO BACK, INTERNAL HINGED PANELS

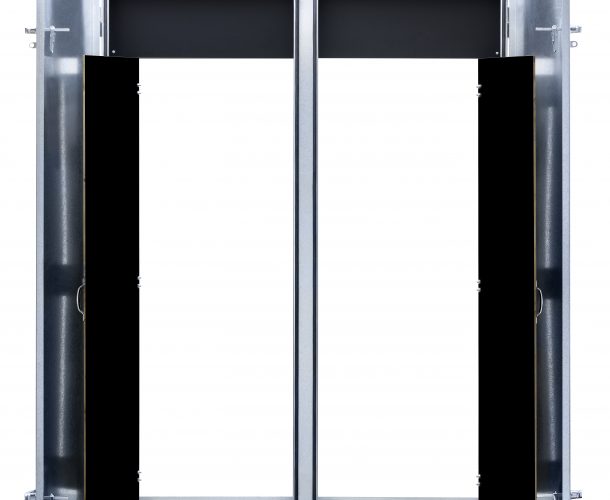

IP55, BOX NO BACK, INTERNAL HINGED PANELS

IP55, BOX NO BACK, INTERNAL HINGED PANELS

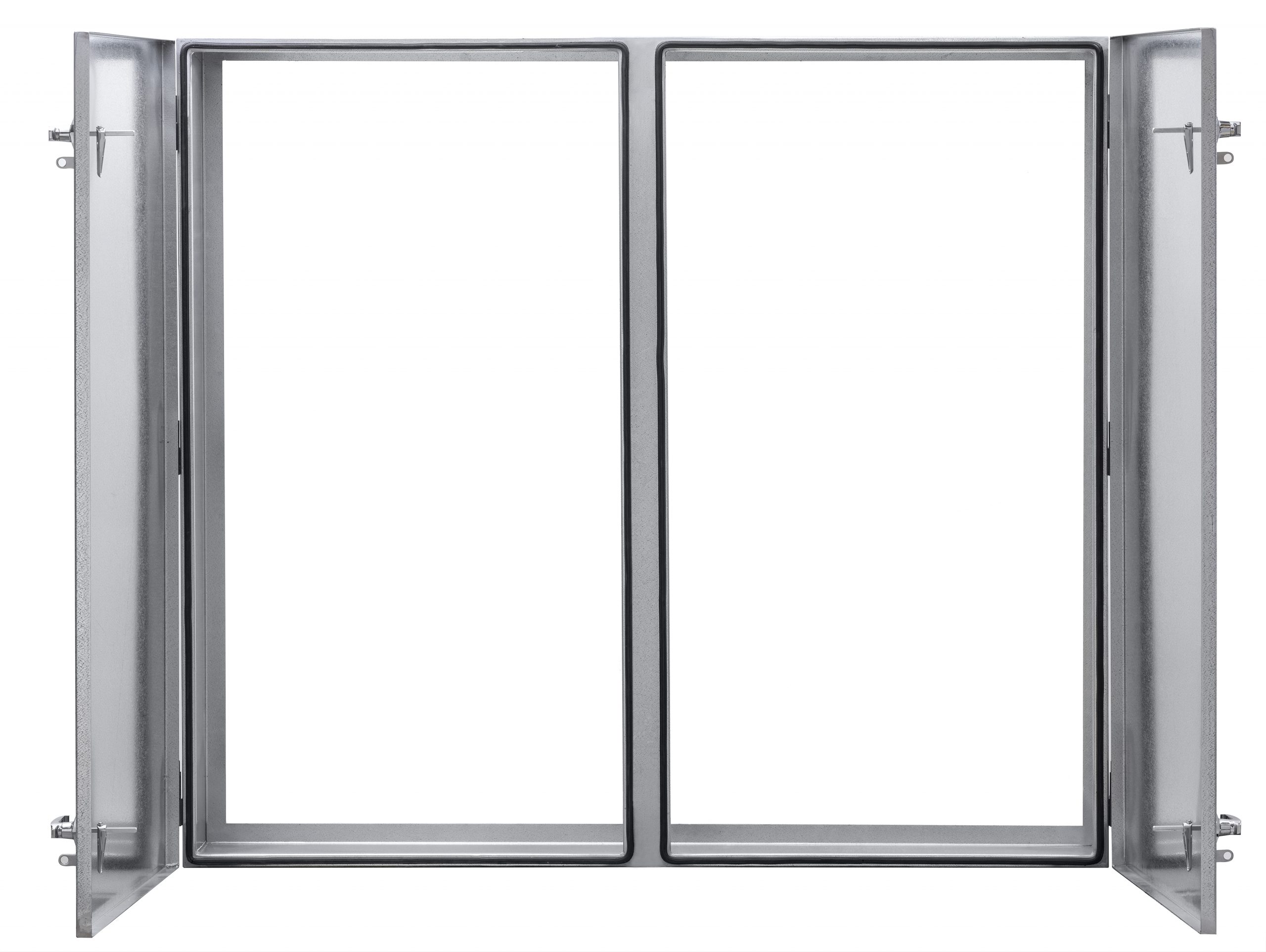

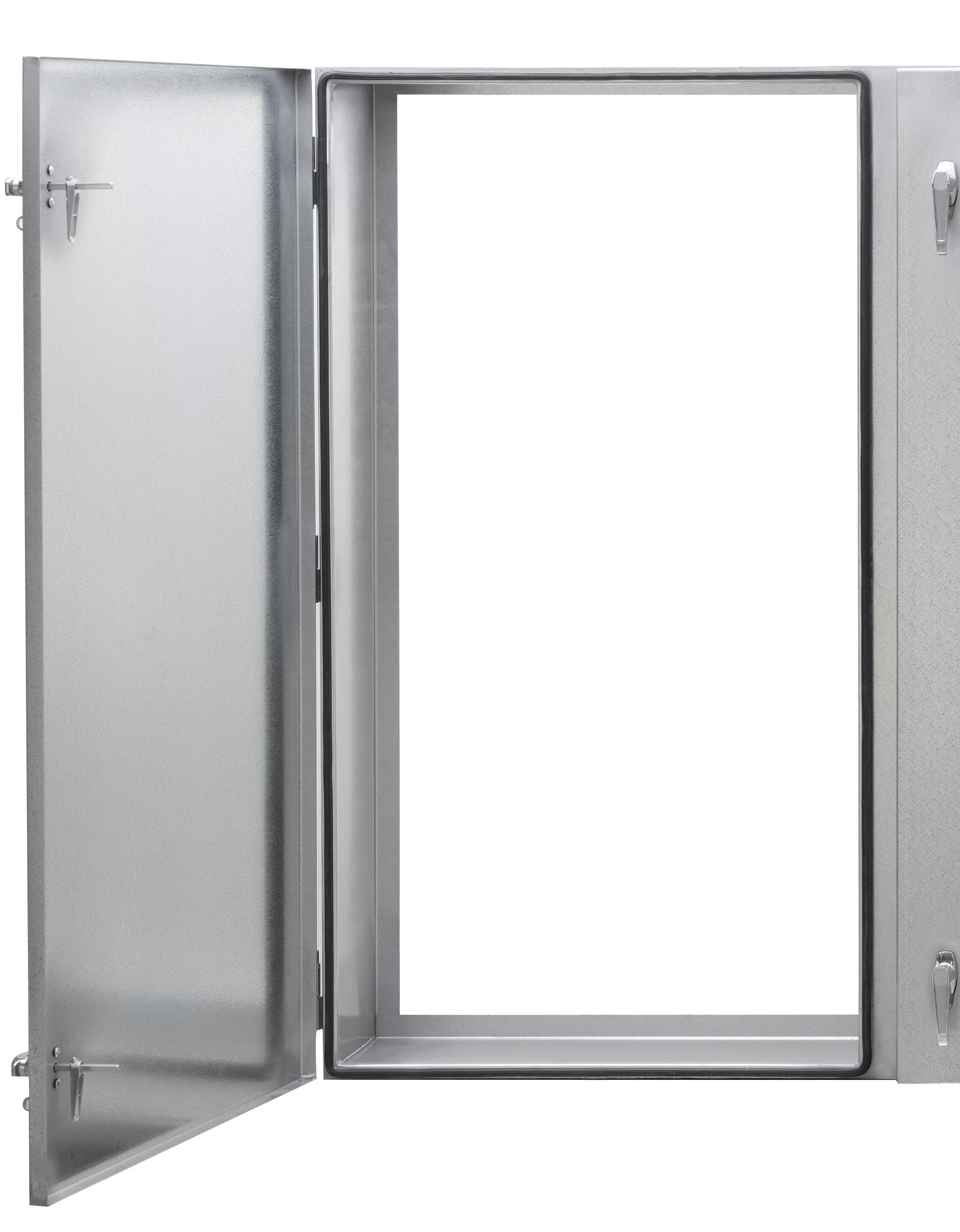

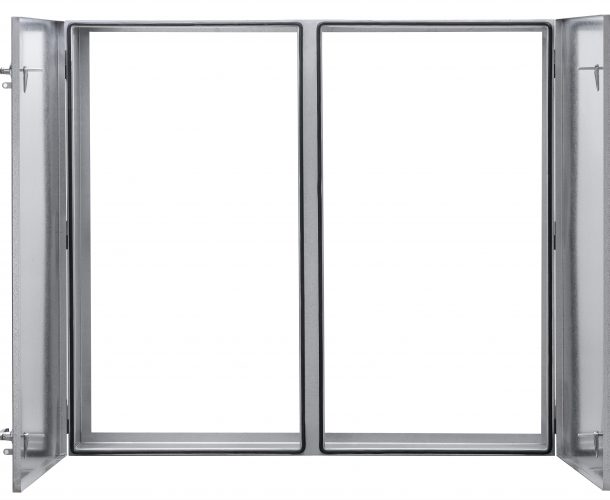

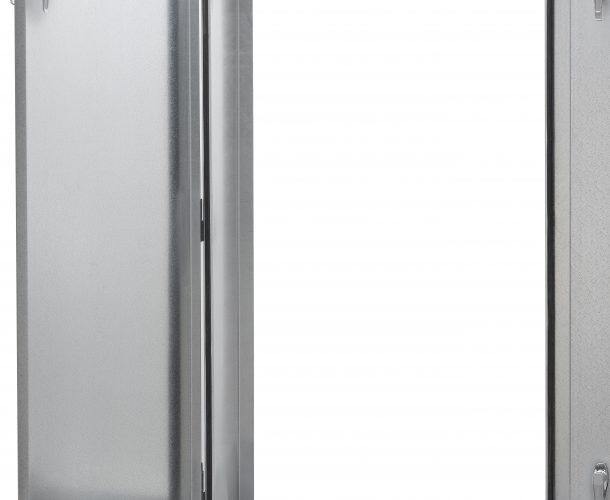

IP55, BOX NO BACK

IP55, BOX NO BACK

Product Codes and Size (mm)

MADE TO ORDER ITEM

WITH BACK

Part Number	Width	Height	Depth
BOX WB1	600	600	330
BOX WB2	600	900	330
BOX WB3	600	1200	330
BOX WB4	600	1500	330
BOX WB5	600	1800	330
BOX WB6	600	2400	330
BOX WB7	900	900	330
BOX WB8	1200	900	330
BOX WB9	1200	1200	330
BOX WB10	1200	1500	330
BOX WB11	1200	1800	330
BOX WB12	1200	2400	330
BOX WB13	1500	1500	330
BOX WB14	1500	1800	330
BOX WB15	1500	2400	330
BOX WB16	1800	1800	330
BOX WB17	1800	2400	330
BOX WB18	2400	2400	330

WITHOUT BACK

Part Number	Width	Height	Depth
BOX NB1	600	600	330
BOX NB2	600	900	330
BOX NB3	600	1200	330
BOX NB4	600	1500	330
BOX NB5	600	1800	330
BOX NB6	600	2400	330
BOX NB7	900	900	330
BOX NB8	1200	900	330
BOX NB9	910	1220	330
BOX NB10	910	1530	330
BOX NB11	910	2000	330
BOX NB12	1220	1220	330
BOX NB13	2440	1500	330
BOX NB14	1500	1500	330
BOX NB15	1800	1800	330
BOX NB16	1500	2400	330

Product Details

OUR STEEL ENCLOSURES FEATURE

1.2mm galvanised steel
IP55 Weatherproof option – Weatherproof boards must be built as per our type-tested design
Steel Enclosures are empty inside
Robust construction
Available with Back and No Back
Custom sizes available on request
Powder coating is an addition
Three-point lock system available on request IP44
Internal hinge panels available on request
Stainless steel is available
Gear tray is an addition
Measurements 1200 and up have 2 doors
