Product Codes and Size (mm)

Part Number	Description	Width	Height	Depth
STD MB WL	LUME	610	610	270
STD MB NL	NO LUME	610	610	270
STD MB XTRA DEEP	EXTRA DEEP	610	610	300

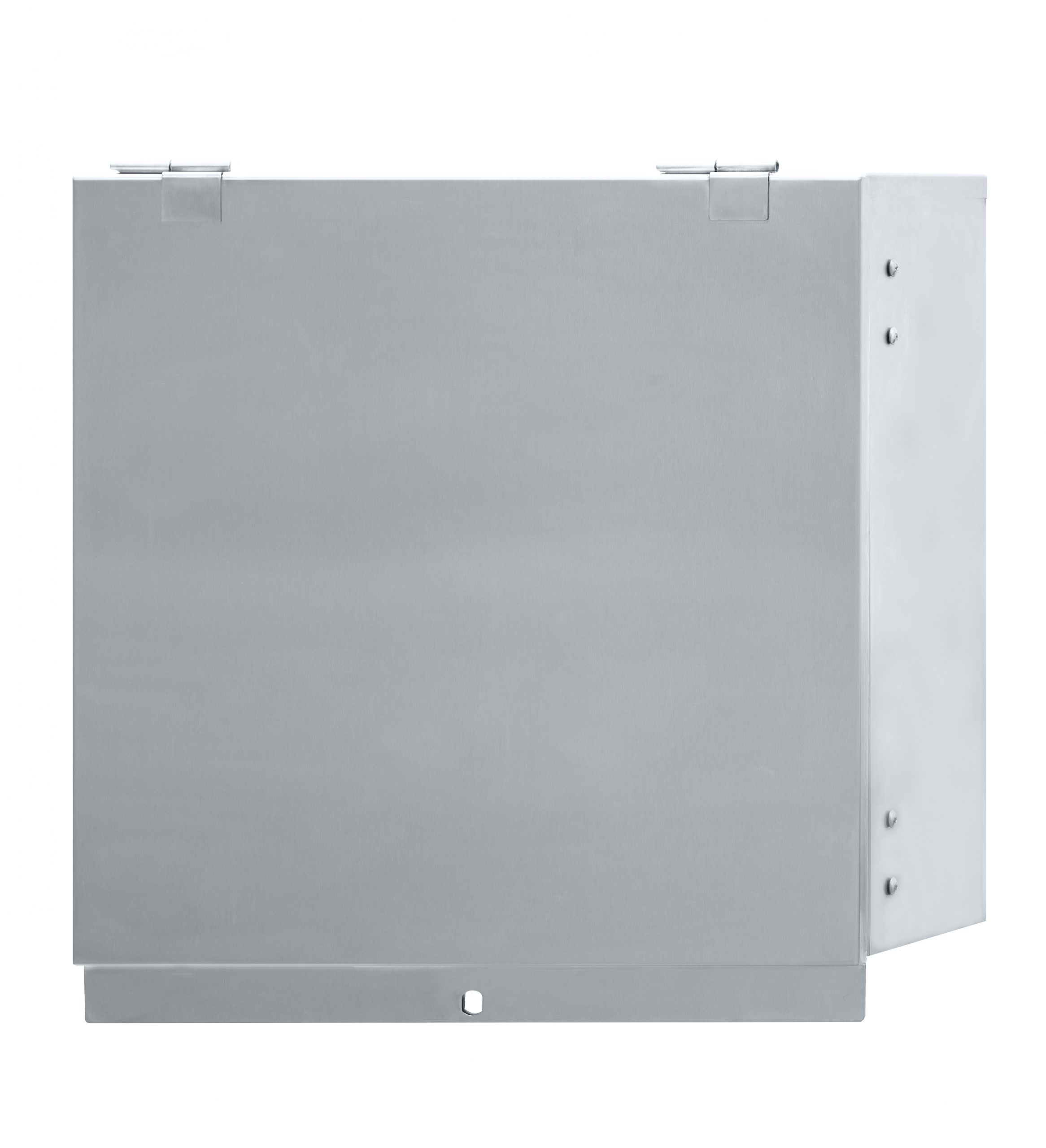

STD MB SS	316 GRADE STAINLESS STEEL	610	610	270

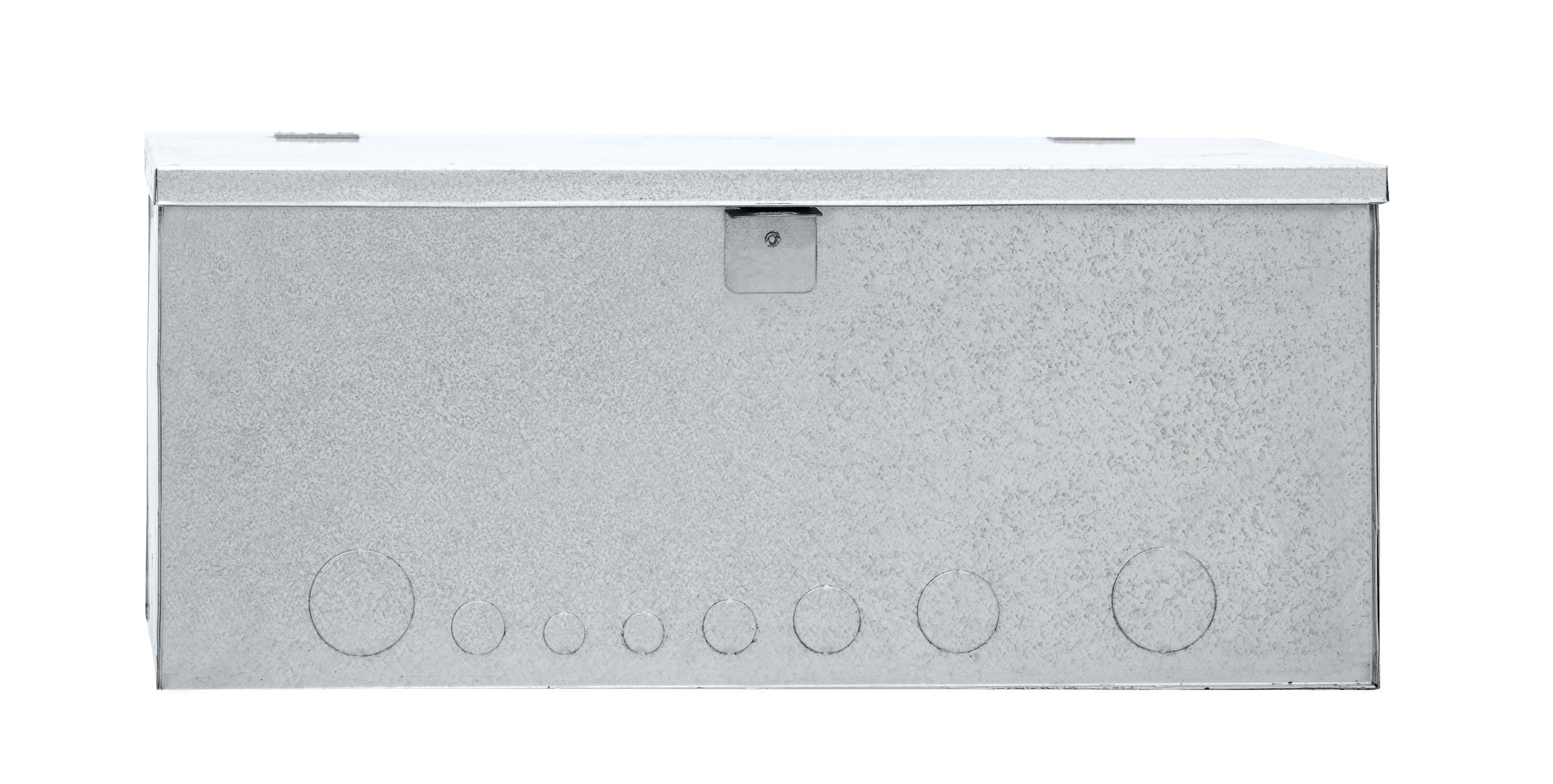

Product Details

1.2 mm Galvanised steel

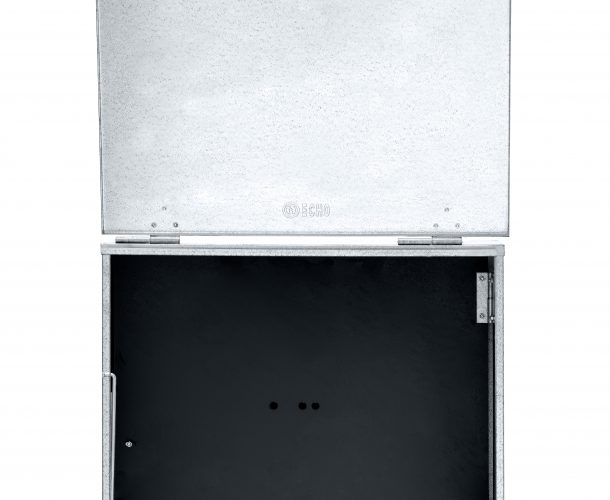

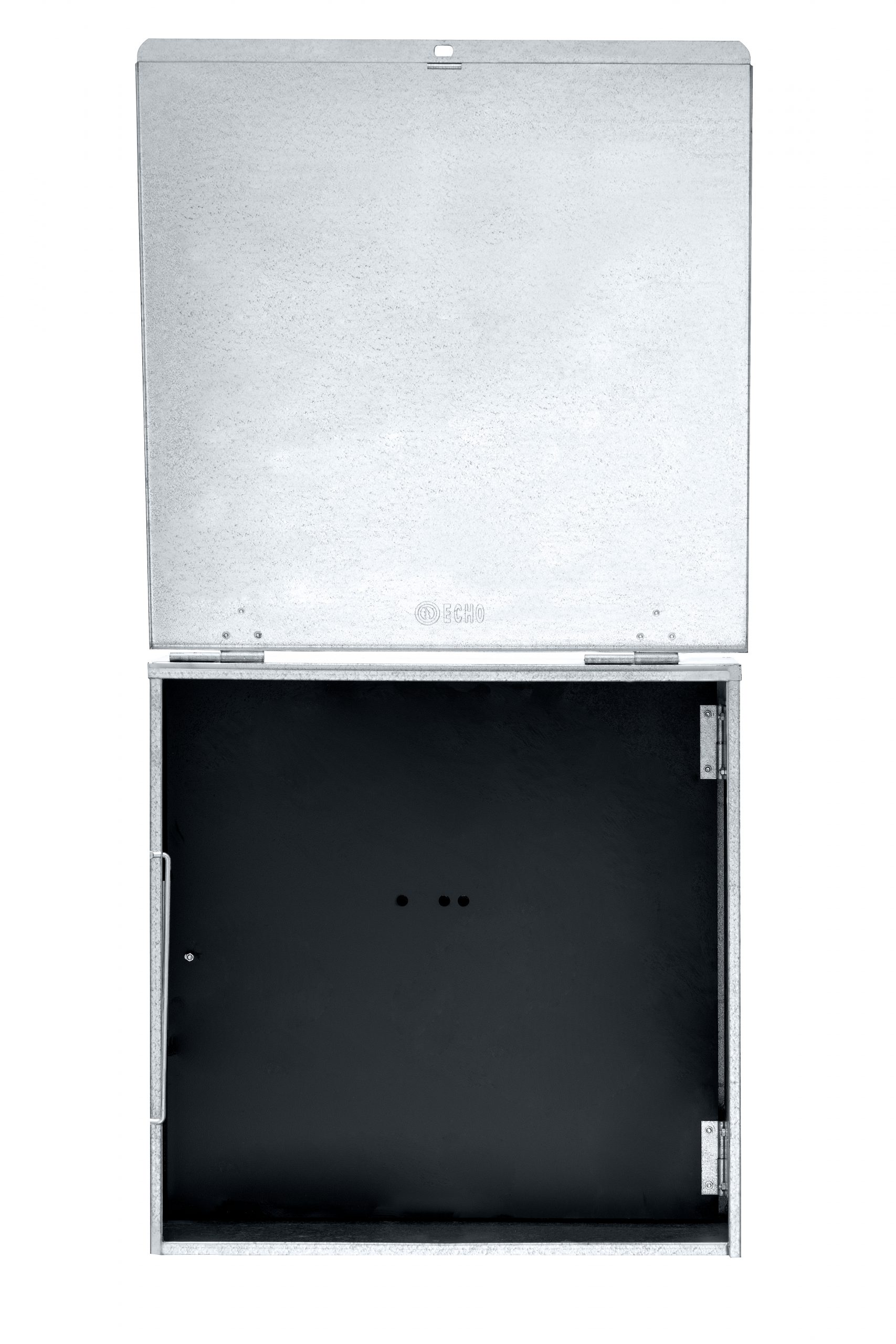

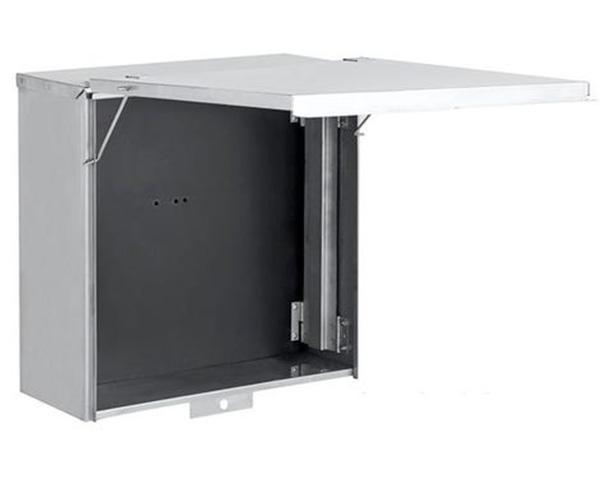

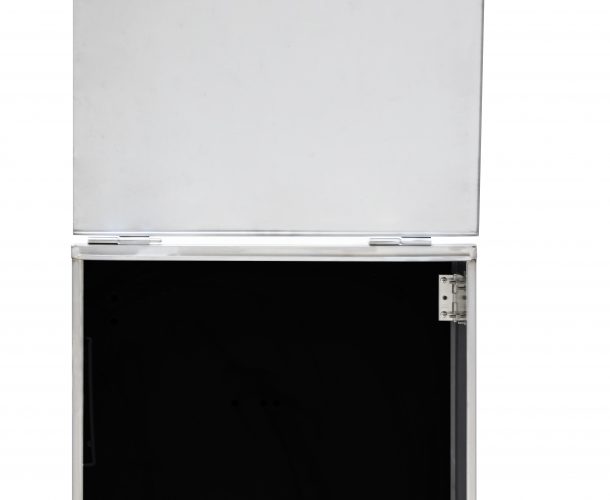

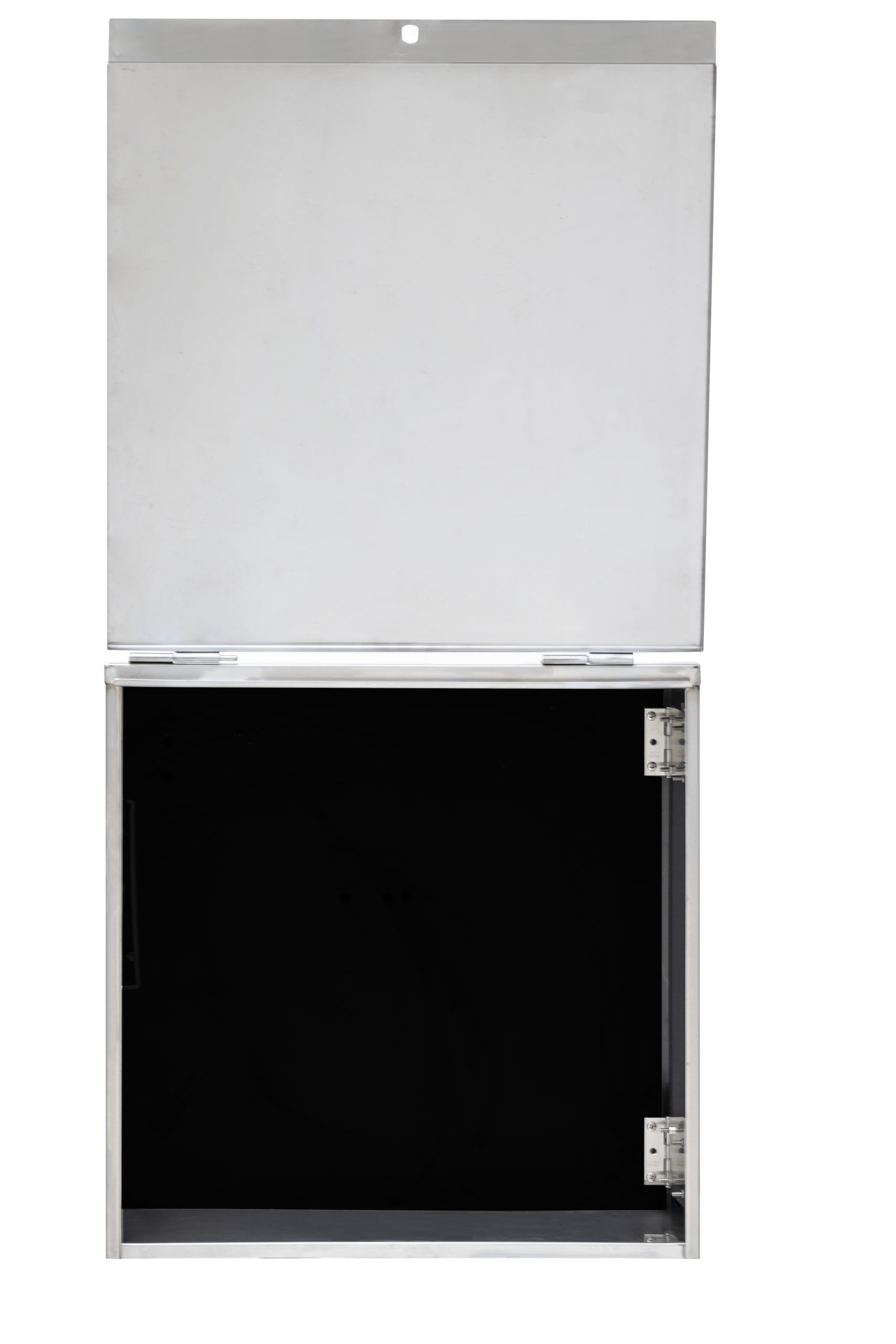

Hinged 6 mm Bakelite panel standard drilled for single phase meter protection device and meter.
IP55 Weatherproof
Robust construction
Provision for Padlock facility
Powder coating is additional
As an option, internally wire to your specifications
