Product Details

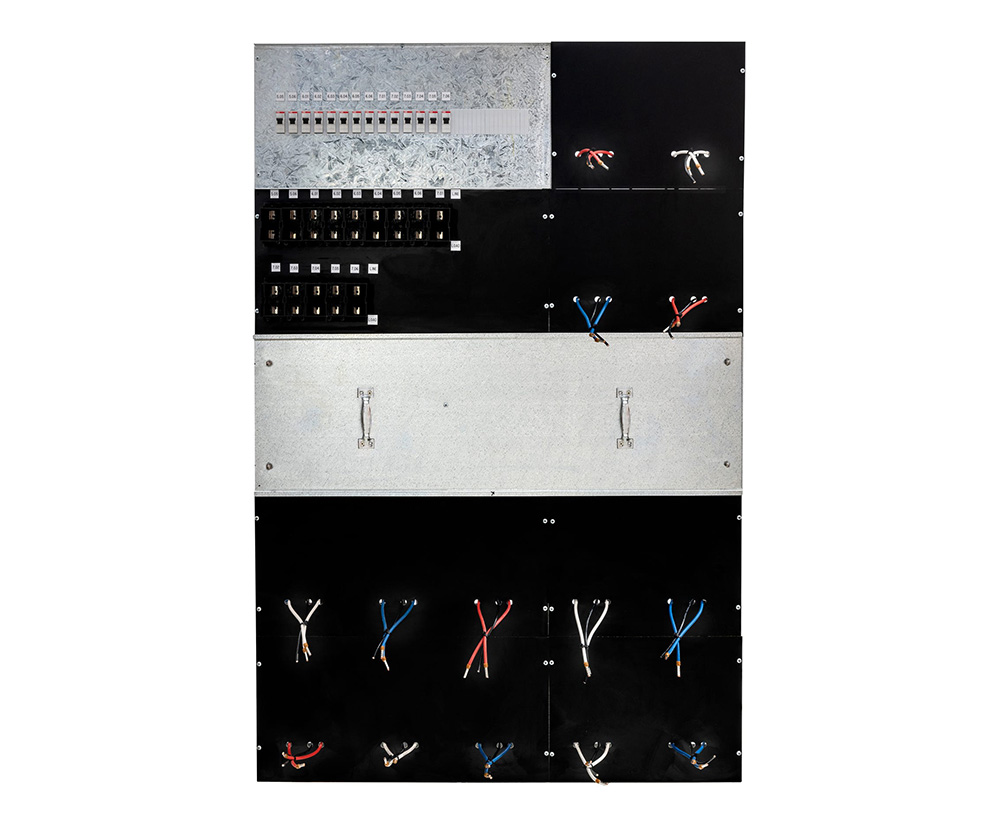

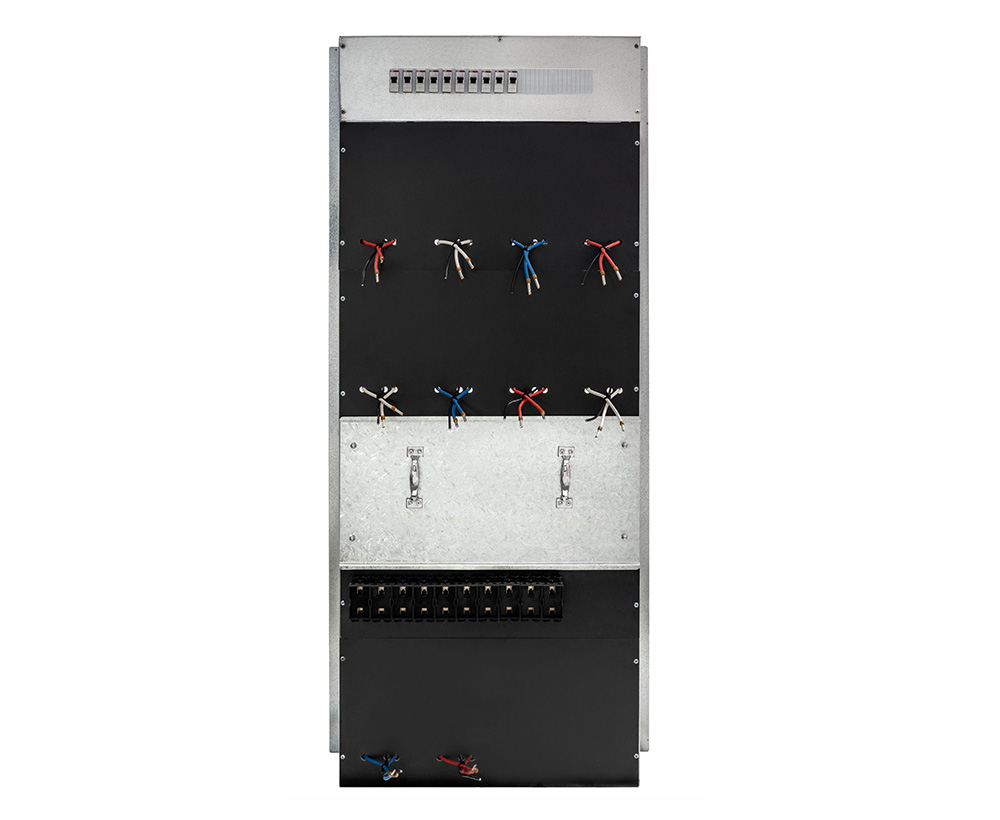

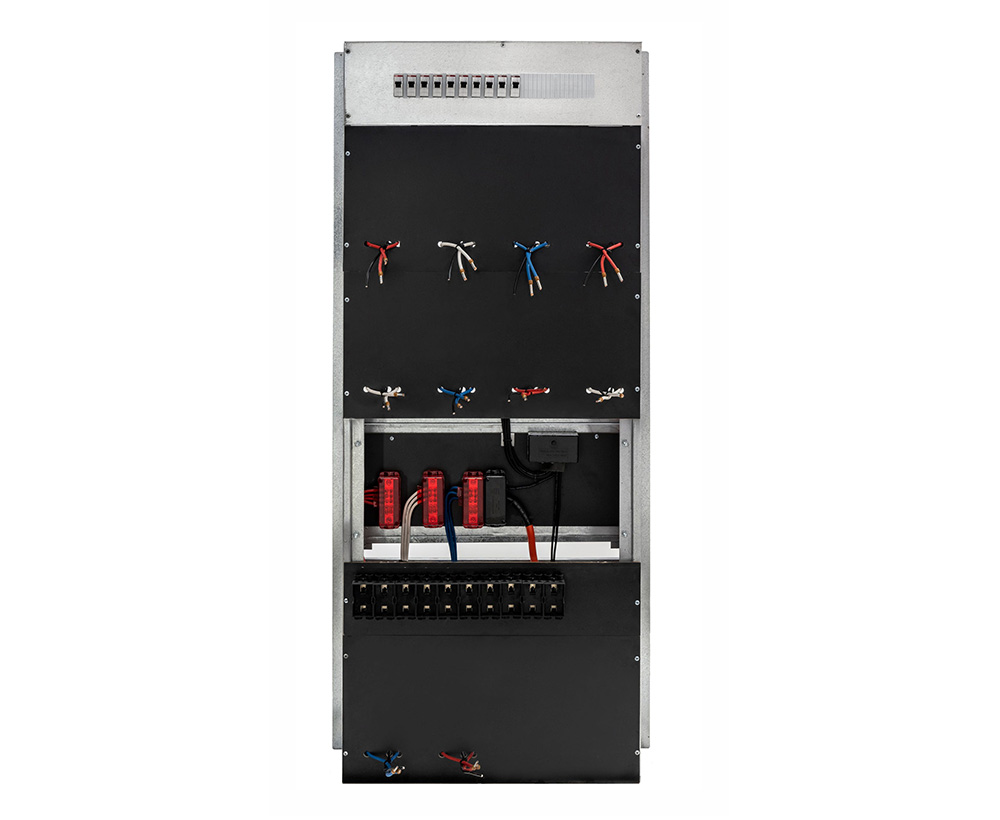

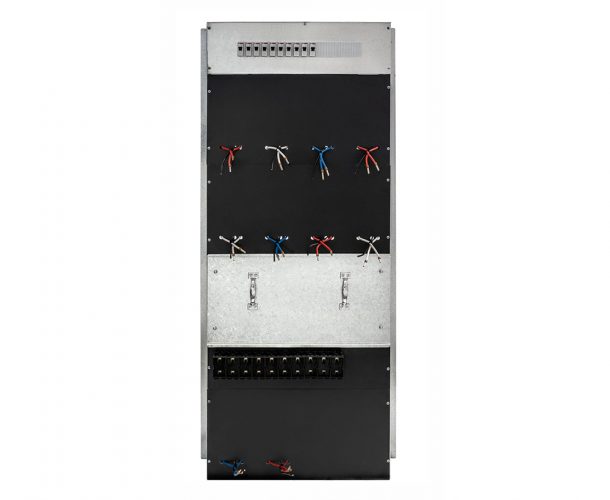

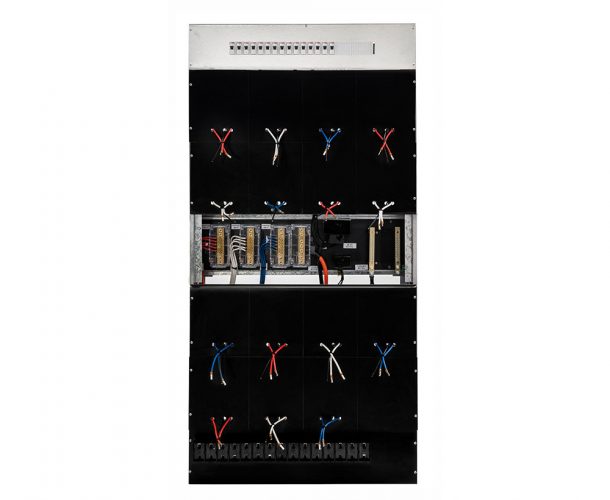

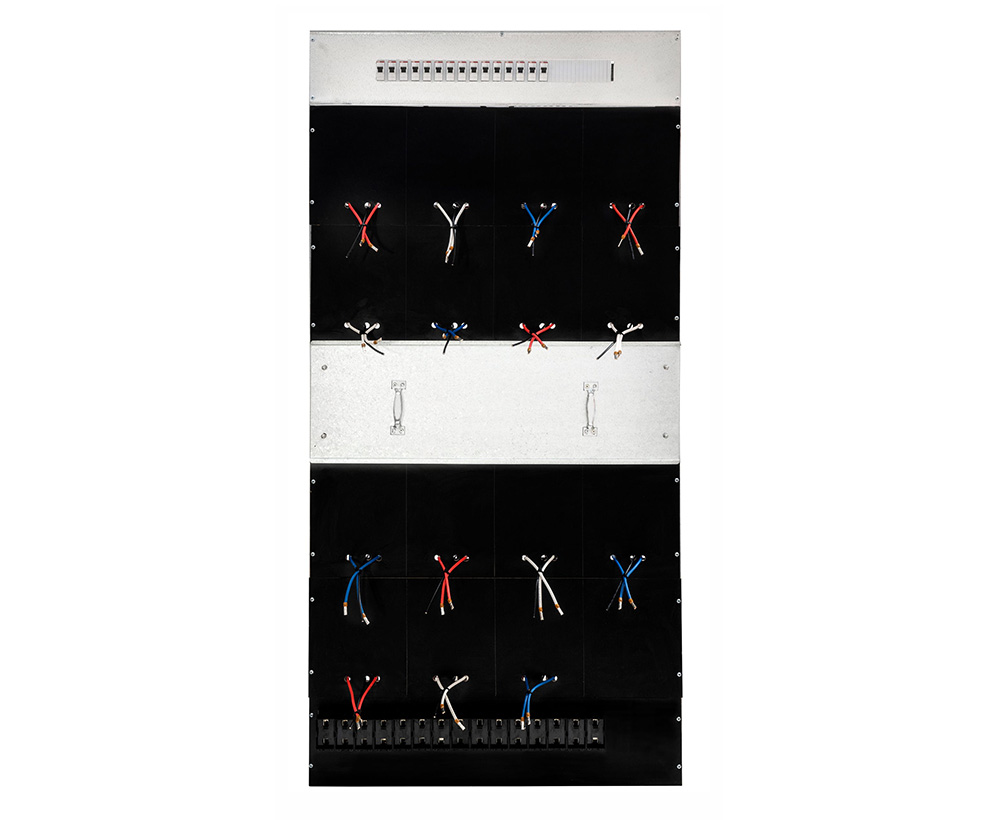

OUR METER PANELS FEATURE

• Current ratings from 100A to 630A.
• Service protection device can be installed, as well as wired safety service section to AS3000
• Adaptable tee-off/cable riser section for cable risers greater than 150mm2
• Filler panel included for mounting links and cable access.
• Fuse chassis arrangements also available
• Built to Energy Authority requirements, AS3000
• 1.2mm Galvanised, Wall mount, IP40
• Top and bottom slots for cable access available
• Tenancy labelling and shop drawings available
• Lip in or lip out to aid in mounting and placement
• Weatherproof capability optional
• Powder coating is an addition however we must be contacted.
• All wired switchboards have a DIN rail section and include side flanges the only aspect that varies between them is the size and way its wired (WW).
• All non wired meter panels can be drilled to your specification.

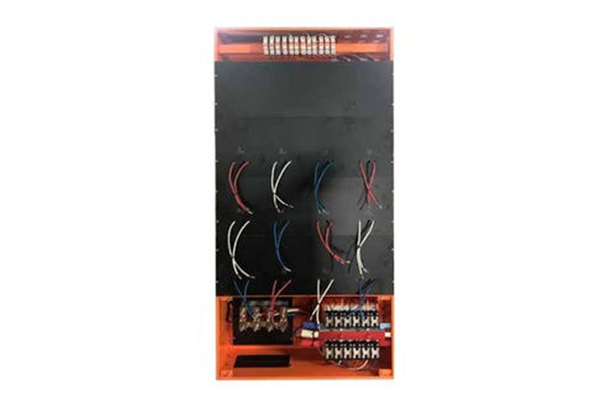

OUR FUSE CHASSIS FEATURE

• Wall mount, IP40, 1.2mm powder coated, or galvanised with backing
• Fitted with Fuse Chassis and links to suit cable riser up to 400mm2.
• Bottom and top Bakelite panels for cable access.
• Internally wired.
• Built to energy retailers requirements
• Built to NSW service and installation rules.
• Specifically created to suit your requirements.
