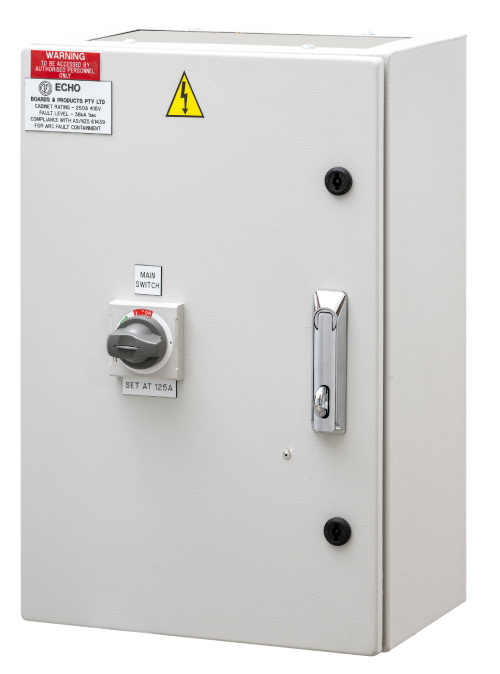

CT Chambers & Main Switch Enclosures

Compliant CT chambers and main switch enclosures with easy installation and high quality build.

get a quote

Typical Applications

  • Commercial and industrial metering.
  • Electrical Vehicle (EV) upgrades
  • Upgrades and expansions
Key Features
  • IP40 rating

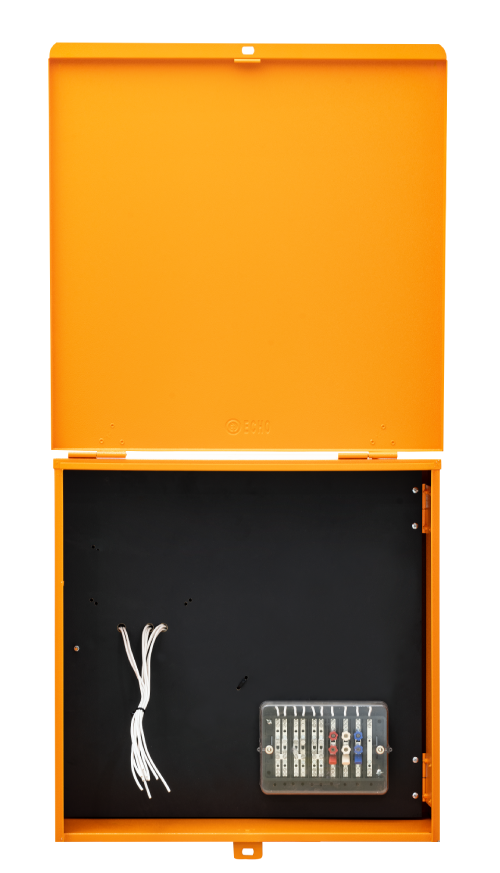

  • Grey or orange metal hinged enclosure

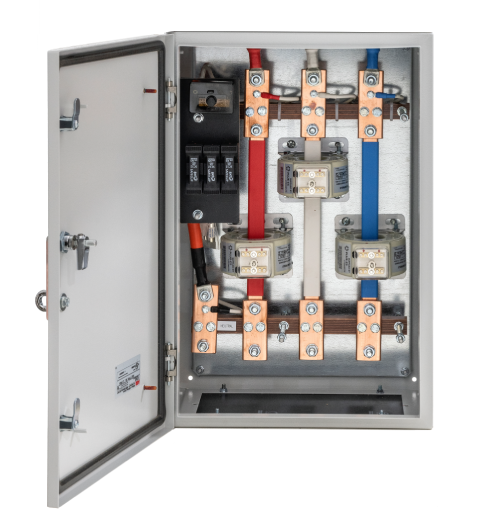

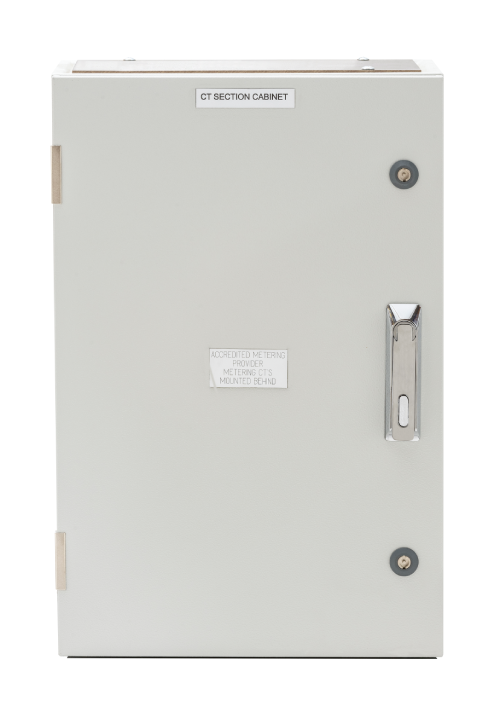

  • Remote CT Chambers up to 1000A
  • Wall mount

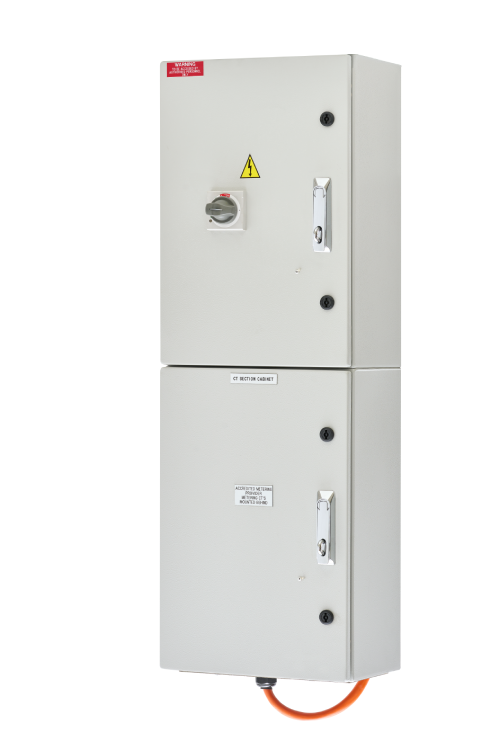

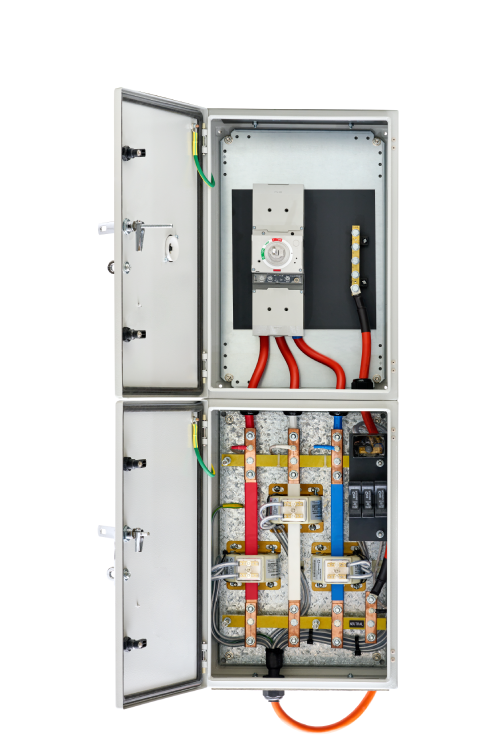

  • Mounted Main Switch Enclosure with CT Chamber available

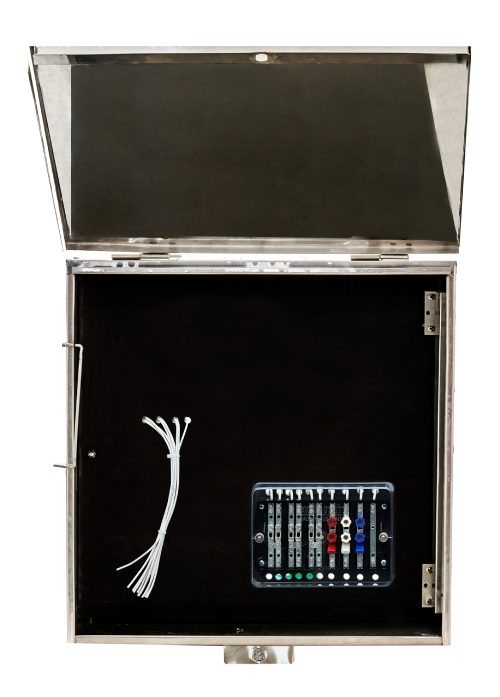

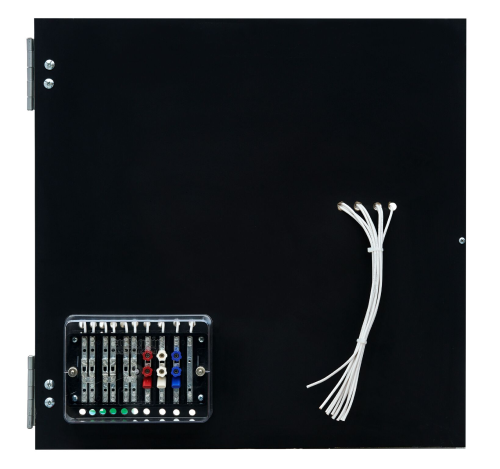

  • Meter panel and surround with test block available as part of the board or remote mounted
  • Adjustable Moulded-Case Circuit Breaker (MCCB) for main switch enclosure and CT Combo
  • IP40-IP66 Ratings
  • Larger enclosures to accommodate various cable entry and exit points
  • Designed to suit NSW, ACT, QLD, VIC, SA and WA requirements
Request A Quote
Product Code Width Height Depth
CT 200 400 600 250
CT 400 600 800 300
CT 630 600 800 300
CT 800 800 800 300
CT 1000 800 1000 300
Enquiry Now
data sheet
Product Code Width Height Depth
MS BOX 250 400 600 250
MS BOX 400 600 600 300
MS BOX 630 600 600 300
Enquiry Now
data sheet
Product Code Width Height Depth
CT COMBO 200 400 1200 250
CT COMBO 250 400 1200 250
CT COMBO 400 600 1600 300
CT COMBO 630 600 1600 300
Enquiry Now
data sheet
