Product Codes and Size (mm)

Part Number	Width	Height	Depth

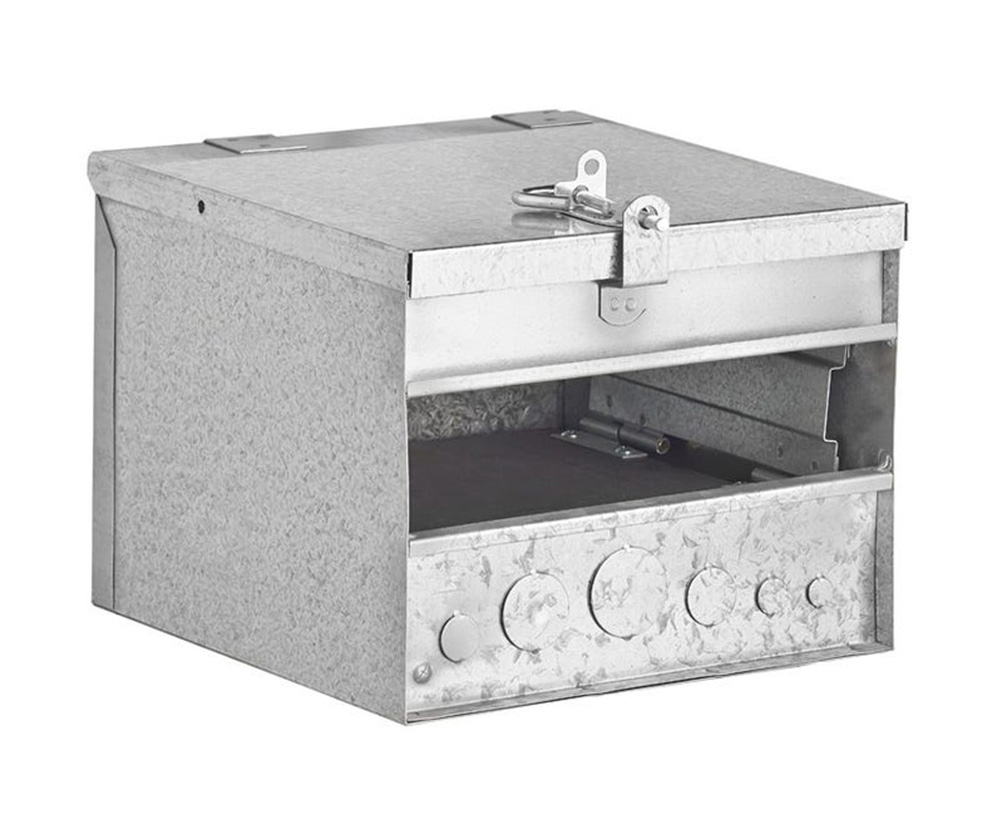

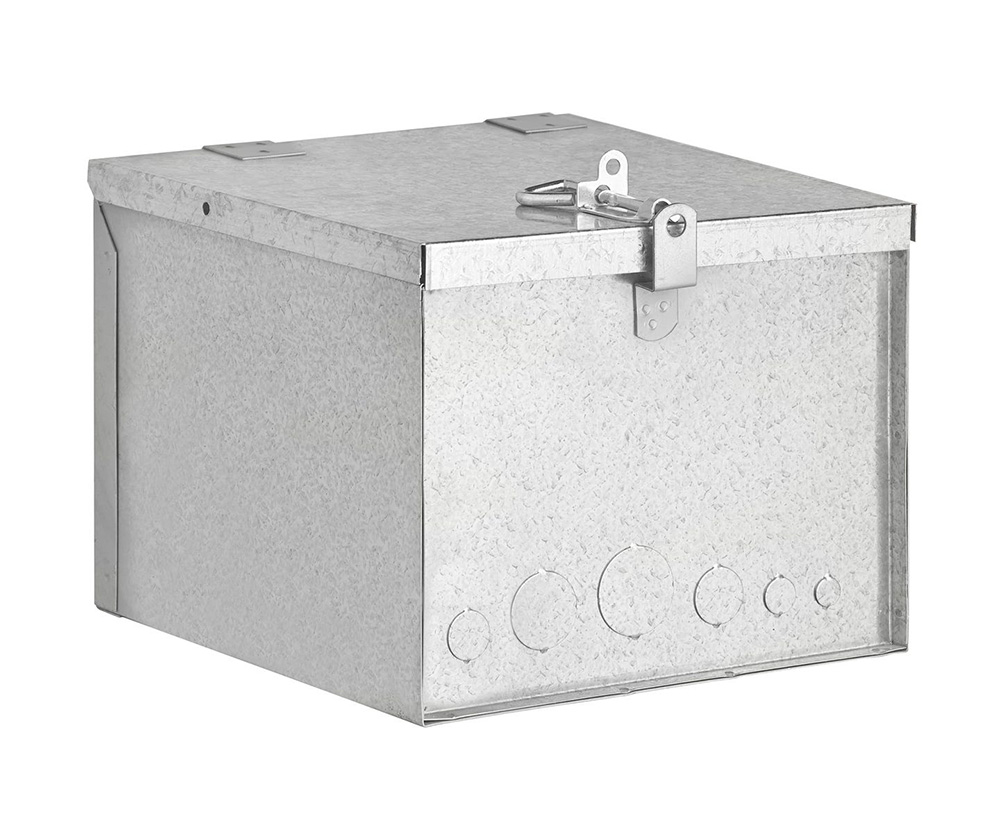

TBOX330 (With Slot)	330	330	260
TBOX480 (With Slot)	480	490	260
MB 330W x 330H x 260D	330	330	260
MB 480W x 490H x 260D	480	490	260
MB 640W x 800H x330D	640	800	330
MB 640W x 960H x 330D	640	960	330
MB 640W x 1200H x 330D	640	1200	330
MB 900W x 900H x 335D	900	900	335
MB 900W x 900H x 400D	900	900	400
MB 1200W x 1200H x 335D	1200	1200	335

Product Details

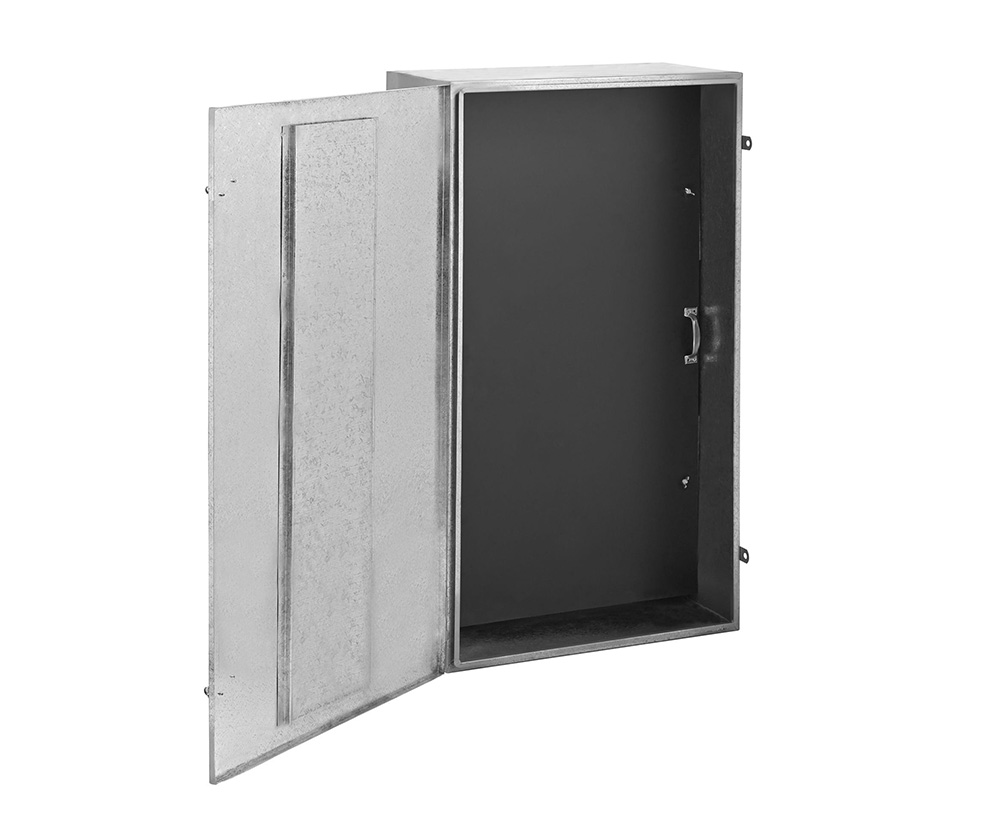

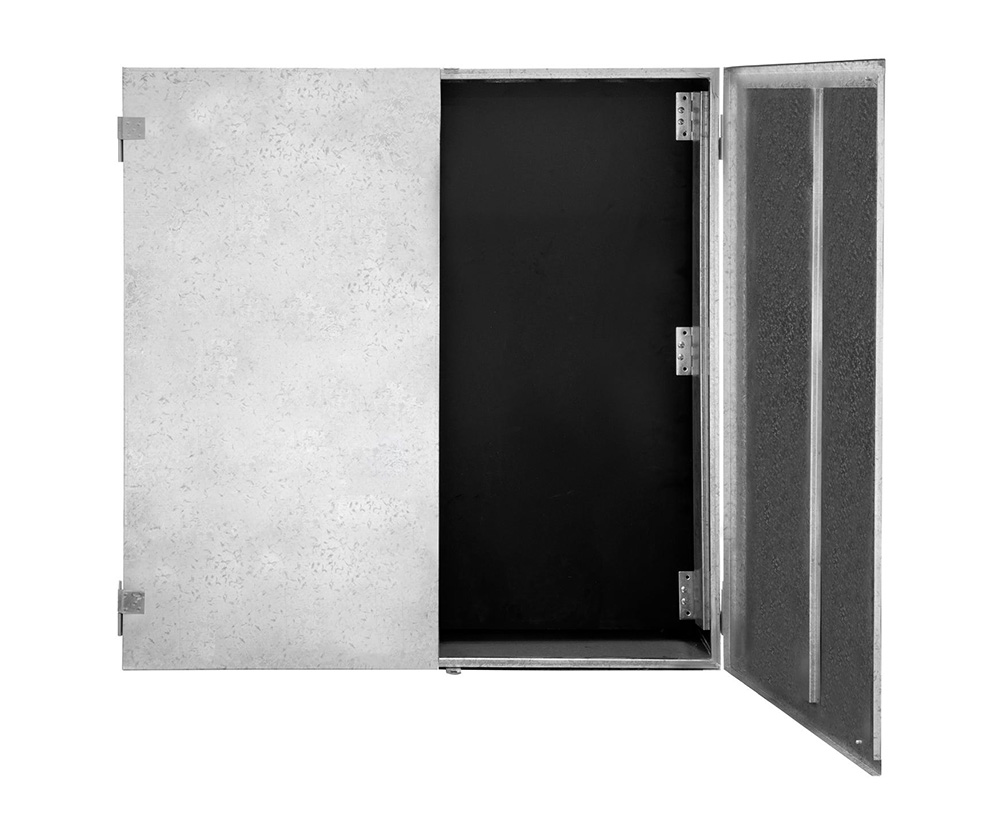

Hinged 6 mm Bakelite panel standard
IP55 Weatherproof Option
Internal gear tray for mounting links only for option 2 and 3
Robust construction
Provision for Padlock facility
Powder coating is an additional option
Stainless steel design is available on request
3 point lock system available on request.

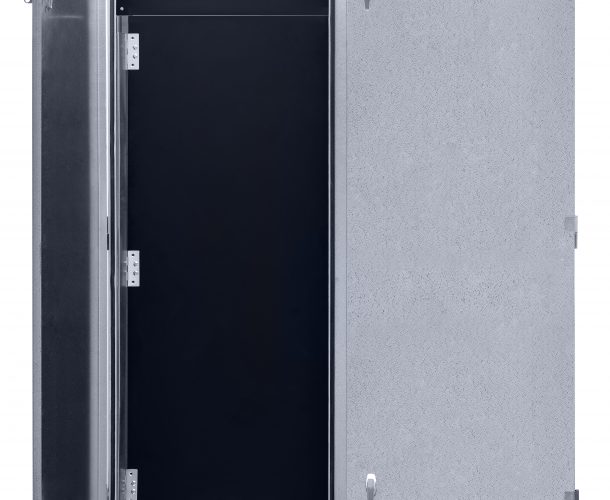

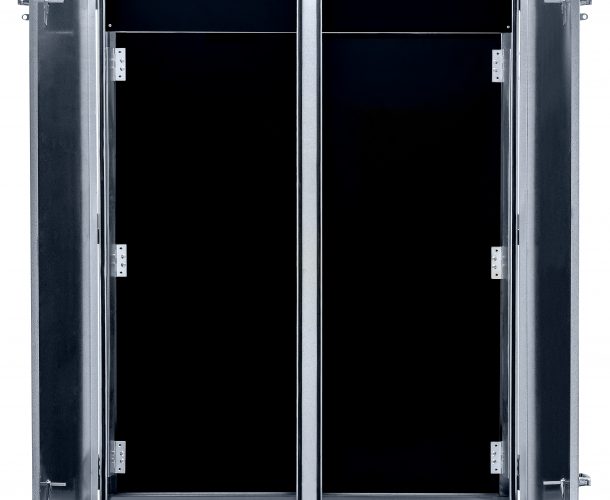

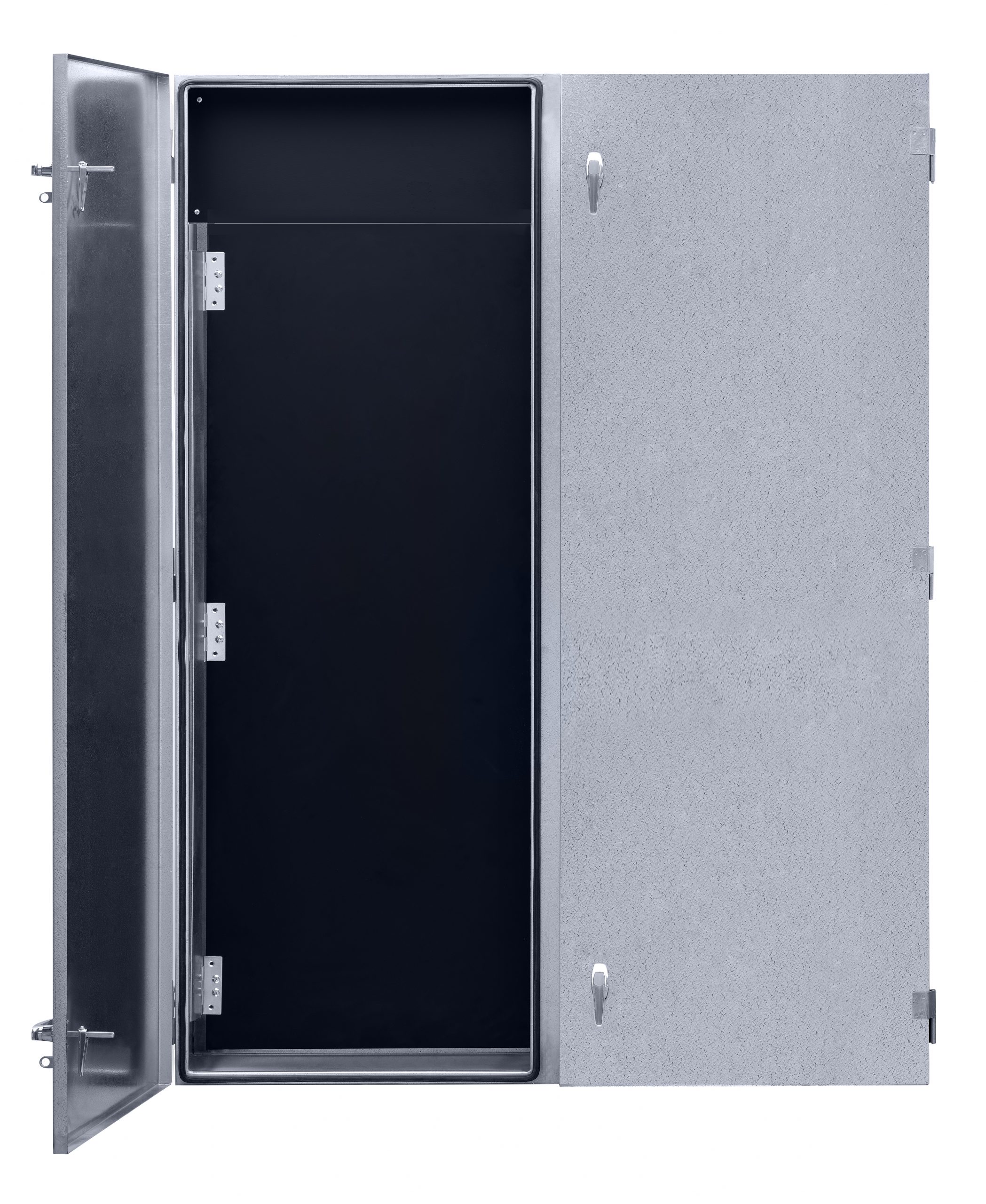

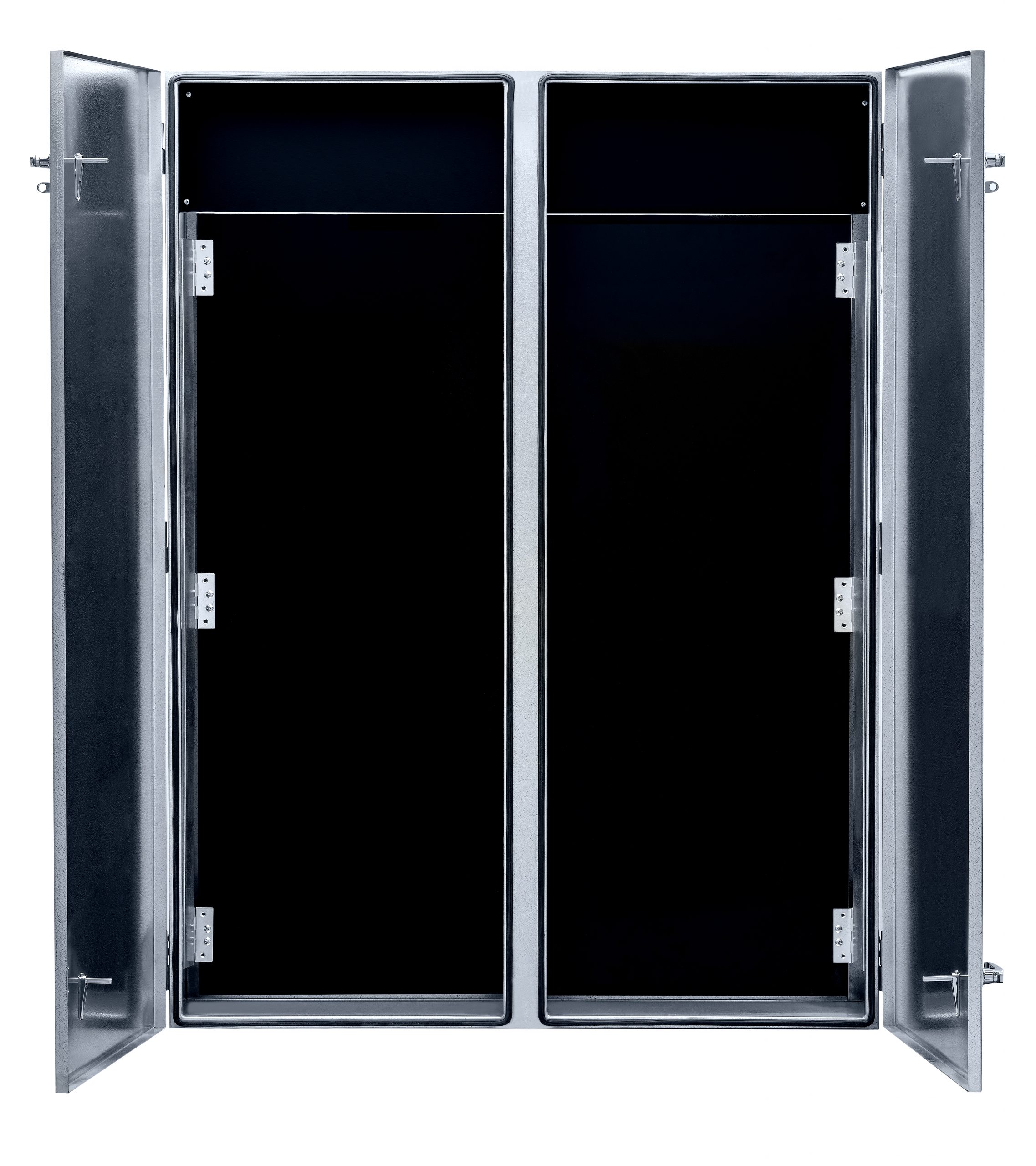

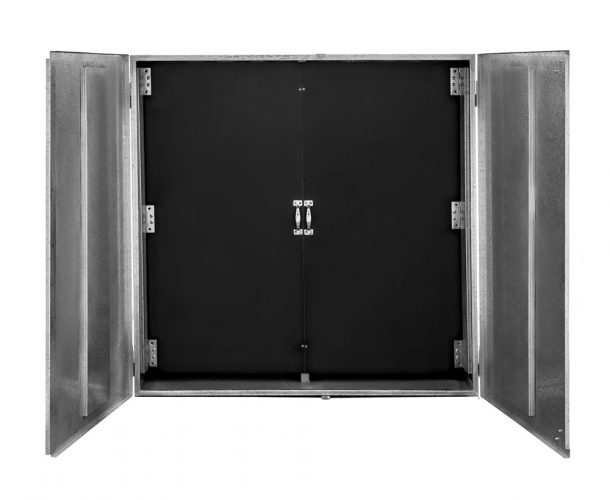

For the larger type boards, Hinged or internal fixed panels are available for various wiring arrangements
